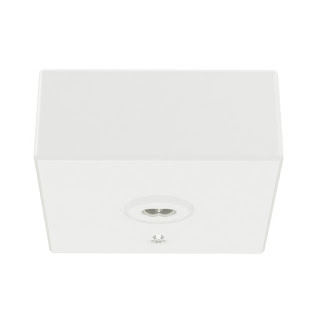

Emergency Down Light-EMD4N

 FOval Lens for escape route illumination

lame retardant ABS housing and Polycarbonate lens

Low spaces illuminate, from 2 to 5m height

Flame retardant ABS housing and Polycarbonate lens
●  Oval Lens for escape route illumination
●  Low spaces illuminate, from 2 to 5m height
●  Embedded mounting (recessed ceiling mounting)
●  LED: SMD XML, 6000K
●  IP20 ingress protection
●  CE SAA certification, ROHS compliance
●  overcharge and over discharge protection
●  Working/fault status bi-color indicator and test button
●  Fault self-diagnostics test and alert function

Electrical Feature:

Input voltage: 220-240VAC 50/60Hz
Power consumption: 4W
LED power: 2.4W
Operate: ACEG, Maintained and Non-maintained

Test: Button self-test + Auto self-test
Battery: Self contained Li-ion/Ni-MH battery
Charge time: 24hours and 16hours for SAA
Discharge duration: 1hour, 2hours, 3hours



Model No

Type

Duration

Test

Flux(AC/DC)

Battery

Illumination

EMD4N/1H/AT

Maintained
Non-Maintained
ACEG

1 hour

Button self-test + Auto self-test

220LM

3.7V, 800mAH

Escape route

EMD4N/2H/AT

2 hours

Button self-test + Auto self-test

220LM

3.7V, 1600mAH

Escape route

EMD4N/3H/AT

3 hours

Button self-test + Auto self-test

220LM

3.7V, 2200mAH

Escape route



Name

Update date

Document

Download

Specification Sheet Emergency Lighting EMD4N Series

2018.9.7

0.8MB

Features

Flame retardant ABS housing and Polycarbonate lens
Oval Lens for escape route illumination
Low spaces illuminate, from 2 to 5m height
Embedded mounting (recessed ceiling mounting)
LED: SMD XML, 6000K
IP20 ingress protection
CE SAA certification, ROHS compliance
overcharge and over discharge protection
Working/fault status bi-color indicator and test button
Fault self-diagnostics test and alert function

Parameter

Electrical Feature:

Input voltage: 220-240VAC 50/60Hz
Power consumption: 4W
LED power: 2.4W
Operate: ACEG, Maintained and Non-maintained

Test: Button self-test + Auto self-test
Battery: Self contained Li-ion/Ni-MH battery
Charge time: 24hours and 16hours for SAA
Discharge duration: 1hour, 2hours, 3hours



Model No

Type

Duration

Test

Flux(AC/DC)

Battery

Illumination

EMD4N/1H/AT

Maintained
Non-Maintained
ACEG

1 hour

Button self-test + Auto self-test

220LM

3.7V, 800mAH

Escape route

EMD4N/2H/AT

2 hours

Button self-test + Auto self-test

220LM

3.7V, 1600mAH

Escape route

EMD4N/3H/AT

3 hours

Button self-test + Auto self-test

220LM

3.7V, 2200mAH

Escape route



Download

Name

Update date

Document

Download

Specification Sheet Emergency Lighting EMD4N Series

2018.9.7

0.8MB



Signcomplex is a professional led luminaires suppliers, we provide led light, LED strips, led strip sign, led sign lights waterproof, downlight emergency light, led sign lighting strips and etc.Want to know more? Please contact us.
